Rotary Film System Liquid Sodium Chloride Vacuum Distillation Evaporator

Name: Rotary Film System Liquid Sodium Chloride Vacuum Distillation Evaporator
Brand: HANPU
Price: 100 USD

Quality Rotary Film System Liquid Sodium Chloride Vacuum Distillation Evaporator for sale

Brand Name : HANPU

Model Number : HP-MEE

Certification : CE,ISO9001

Place of Origin : Jiangsu province，China

MOQ : 1 set

Price : 100,000USD~1,000,000USD/SET

Payment Terms : T/T, L/C, D/A, D/P, Western Union, Western Union

Supply Ability : 1 set/ 3 months

Delivery Time : 90 days

Packaging Details : Bulk with stronge packing

Applicable Industries : Food & Beverage，chemical industry

Key word : High efficient

Key Selling Points : energy saving

Material : Stainless Steel 304/316L, Titanium

Voltage : 220-480V

Process : Vacuum Evaporation

Capacity : 500-80000kg/h

Evaporation type : Falling film

Warranty of core components : 12 months

Contact Now

Products Description

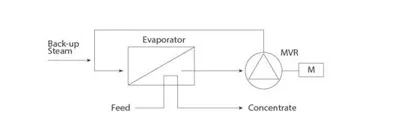

Mechanical vaporization re-compression system, which is called MVR which principle is to compress the second steam generated by evaporator by high efficiency steam compressor; this process transfers electric energy to heating energy and higher the pressure and temperature of second steam. The second steam with higher temperature will be sent to evaporation room to heat the product for evaporation. So the latent heat of vaporization of the second steam can be circularly used. Making use of less energy which is the mechanical energy of compressor blade wheel as the compression heat pump, energy is added into the heating medium and is circularly used in heating process. Under this circumstance, no need to add first steam as heating medium.

Rotary Film System Liquid Sodium Chloride Vacuum Distillation Evaporator

Main Characteristics
◆ Main driven power of MVR evaporation system is electric energy. Electric energy transfer to mechanical energy and improve the quality of second steam which is more economic than produce or purchase fresh steam. ◆ Under most of the evaporation process, system no need fresh steam during operation. Only need some steam compensation for pre-heating the raw material when heat energy from product discharged or mother liquid cannot be recycled due to process requirement. ◆ No need independent condenser for second steam condensation, so no need circulating cooling water. Water resource and electric energy will be saved. ◆ Compared with traditional evaporators, MVR evaporator temperature difference is much smaller, can achieve moderate evaporation, greatly improve product quality and reduce fouling. ◆ Evaporation temperature of system can be controlled and very suitable for evaporation an concentration of thermal sensitive product. ◆ Lowest energy consumption and operation cost,electricity consumption of one ton water's evaporation is 2.2ks/C.

Application

"zero release" solution for industrial waste water
 1)Ammonia and chloride waster water, multiple inorganic salt waster water
 2)electroplating waste water
 3)printing and dyeing waste water
 4)food industry waste water
 5)paper waste water
 6)petrochemical, metallurgy waste water

Evaporation and concentration for process industry
 1)food fermentation (aginomoto, citric acid, starch and sugar)
 2)pharmacy (traditional Chinesemedicine preparation, low temperature concentration of western medicine)
 3)fine chemical (pesticide, synthetic dyes, organic pigments, paints, spice and essence, cosmetic)
 4)chlorine chemical (salt water concentration)
 5)seawater desalt

Evaporation Tech

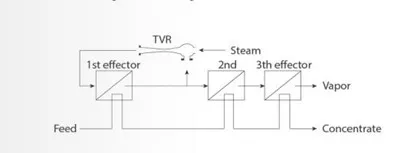

TVR Evaporation

TVR(Thermal Vapor Re Compression) evaporation,that is the recompression evaporation of thermal steam,uses the principle of steam jet pump and uses high/medium pressure steam as power to compress and mix part of the secondary steam and then enter the heating chamber as heating steam

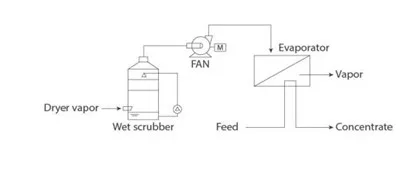

Waste heat evaporation

Generally used the heat recycling evaporation Strictly requirements to waste gas quality, especially to the solid contents. Used for material pre concentration. With low run cost

Multiple effect evaporation

It is a system that connects multiple evaporators. Only fresh steam is added to the first effect, and the generated secondary steam is used as the heating steam of latter effet, that is,the heating chamber of the latter effect becomes the condenser of the former seconday steam. By analogy, the last effect is often operated with colling medium. Therefore, multi-effect evaporation not only significantly reduces the consumption of heating steam, but also significantly reduces the consumption of cooling medium.
